Secure Web-Based Messaging System

AES-256 encrypted enterprise chat for Kultur Technologies with Go backend, responsive web UI, and PostgreSQL persistence tailored to internal comms.

Overview

This full-stack platform, built for Kultur Technologies, keeps browser-based messaging fully in-house to satisfy confidentiality, integrity, and real-time workflow requirements. A Go API layer applies AES-256 encryption, PostgreSQL stores all messages plus key metadata, and an HTML/CSS/JS interface delivers a responsive chat experience across desktop and mobile.

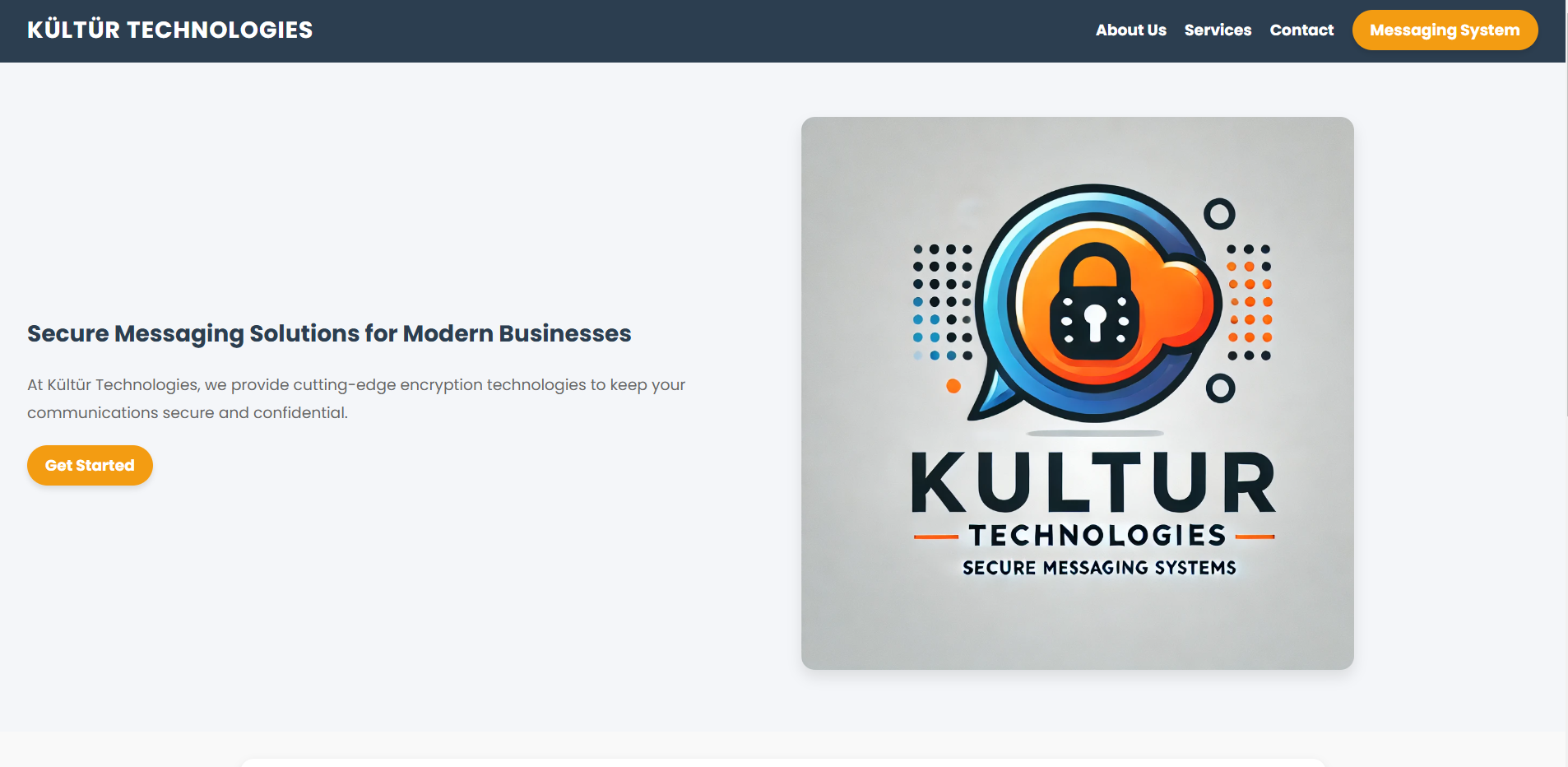

Secure messaging marketing landing and primary layout
Figure 1. Landing experience that introduces the Kultur Technologies secure messaging stack.
Chat interface showing real-time exchange
Figure 2. Login and registration flows optimized for rapid onboarding across desktop and mobile.
Media upload and preview workflow
Figure 3. Responsive chat window showcasing the encrypted media pipeline rendered by the static HTML/CSS/JS client.

Motivation

  • Cyber threats and data-leak risks targeting enterprise chat channels continue rising.
  • Commercial SaaS tools are costly, closed-source, and often inflexible.
  • The goal was to build a company-controlled messaging stack with end-to-end encryption and a customizable web UX.

Project Objectives

  • Design secure messaging with AES-256.
  • Support real-time text and multimedia sharing.
  • Implement strong authentication and access control.
  • Model a structured PostgreSQL schema with isolated key storage.
  • Provide a responsive front end that optimizes usability.

System Architecture

Frontend (HTML5/CSS3/JS)

  • Login/registration flows, chat panel, media upload/preview.
  • Responsive layouts for mobile and desktop with instant message rendering.

Backend (Go)

  • Manages sessions and token validation.
  • Routes messages, queues delivery, and leverages Go's concurrency.
  • Uses crypto/aes + crypto/cipher for AES-256 CBC encryption.
  • Handles multimedia encoding, API endpoints, and error management.

Database (PostgreSQL)

  • Stores user profiles with hashed credentials.
  • Persists encrypted messages, timestamps, sender/receiver IDs.
  • Keeps 256-bit keys plus IV metadata inside a dedicated MessageKeys table.
  • ER model centers on Users, Messages, and MessageKeys to maintain referential integrity.

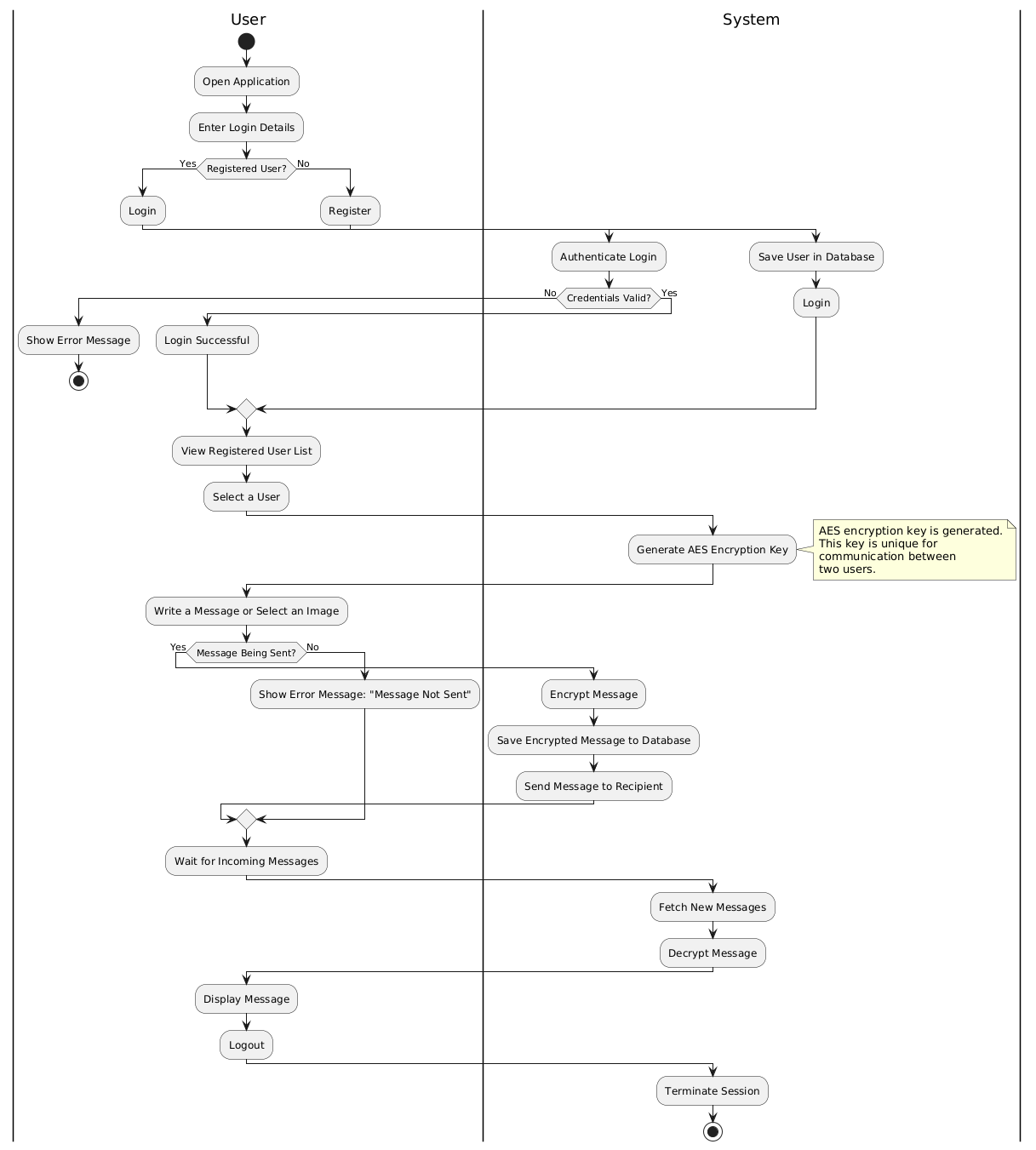

Activity diagram covering auth, encryption, and delivery stages
Figure 4. Activity diagram connecting the Go services, PostgreSQL storage, and web client workflows.

Cryptographic Workflow

  1. Generate a secure 256-bit key and random IV.
  2. Encrypt message payload with AES-256 CBC and Base64 encode it.
  3. Write ciphertext to PostgreSQL while storing keys in a separate table.
  4. Decrypt only for authorized users; historical ciphers like Playfair or Vigenere were evaluated but rejected for insufficient strength.
AES-256 block diagram used in the project
Figure 5. Reference diagram documenting the AES-256 CBC round structure implemented in Go.

Core Functionality

  • Authentication: Validates hashed credentials, maintains sessions, and enforces input checks.
  • Real-Time Messaging: Enables direct text/multimedia exchange between authenticated users.
  • Multimedia Sharing: Encrypts and stores images server-side, decoding them for recipients.
  • Key Management: Separates message keys to add another defense layer against unauthorized access.
  • Database Integrity: Links every message to both users and key records for full traceability.

Implementation Notes

  • Go backend exposes endpoints for message send/receive, authentication, and file uploads.
  • Frontend pages (Auth.html, Chat.html) handle async updates to keep the chat live.
  • Activity flow: user logs in → backend issues JWT/session → messages are encrypted and stored → authorized clients decrypt on demand.

Testing & Evaluation

  • Authentication: Verified valid/invalid login cases and brute-force protections.
  • Messaging Stability: Maintained low latency under concurrent message exchanges.
  • AES Validation: Confirmed proper error handling for malformed keys/IVs and correctness of encryption/decryption.
  • Multimedia: Ensured Base64-encoded images remain intact end to end.
  • Cipher Benchmark: Demonstrated AES-256 superiority over classical methods for both security and media compatibility.

Security Strengths

  • AES-256 plus isolated key storage keeps database records unreadable.
  • Password hashing, form validation, and the modular Go backend minimize attack surface.
  • PostgreSQL constraints guarantee consistency and auditability.

Applications

  • Internal corporate chat and secure document/image transfer.
  • Industries requiring strict confidentiality (finance, legal, consulting).
  • Remote teams needing custom, organization-owned collaboration tools.

Conclusion

By combining AES-256 encryption, Go services, PostgreSQL data modeling, and a modern web UI, the system delivers a messaging environment centered on confidentiality, integrity, and operational efficiency. It also lays groundwork for future upgrades such as group chats, automatic key rotation, message expiration, and broader end-to-end encryption features.

Summary

I engineered an AES-256 encrypted, Go-backed, PostgreSQL-persisted browser messaging platform for Kultur Technologies that unifies real-time chat, multimedia sharing, authentication, and key management in one secure architecture.
